City Electric Bike

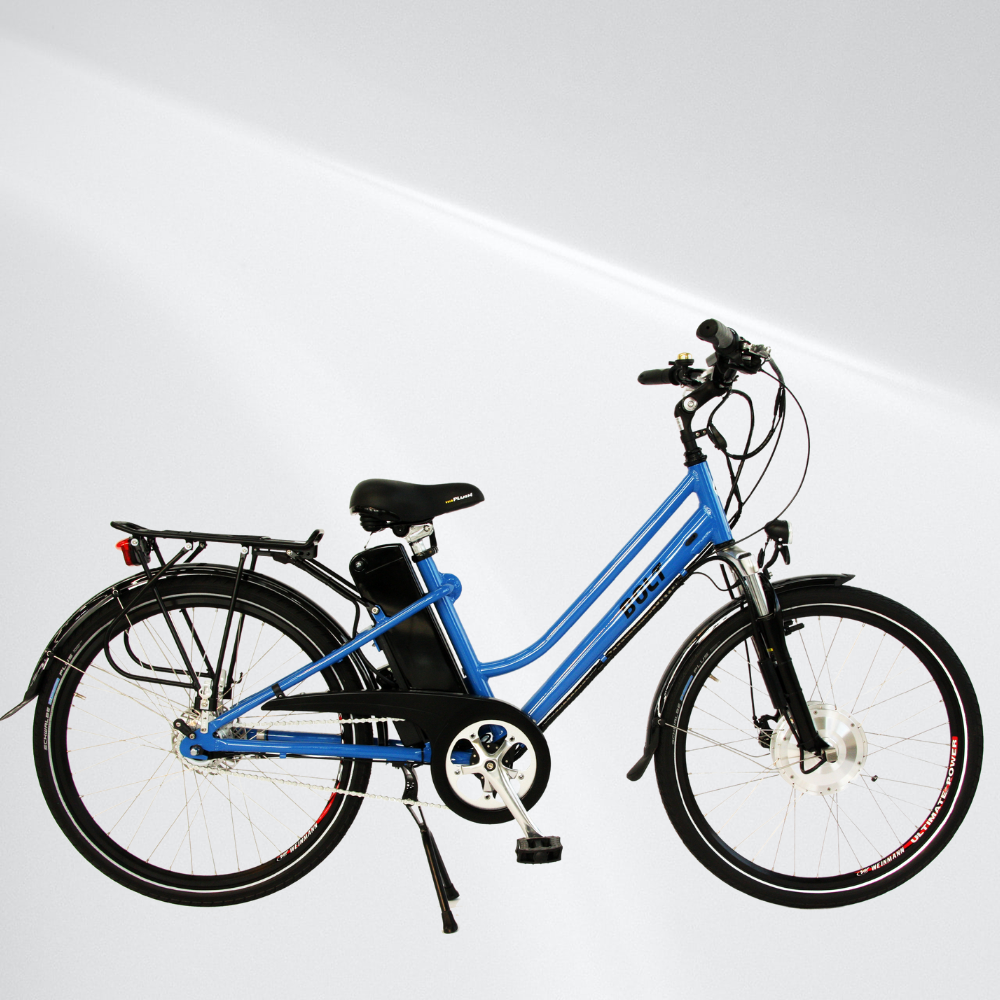

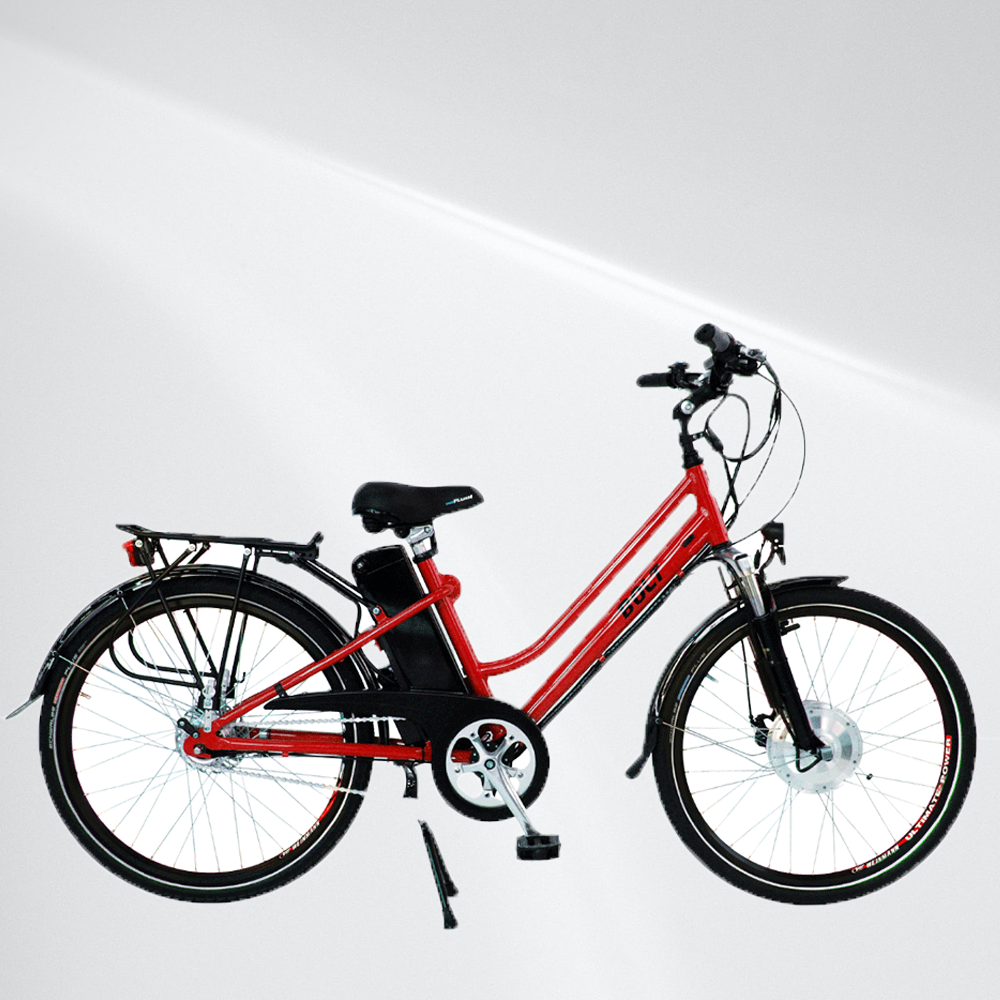

Bolt
COMPONENTS
Frame | 6061 Al Alloy. T4, T6.Step-Thru Frame Seat Tube Height: 17″, Diamond Frame Seat Tube Height: 19″ |
|---|---|
Fork | Al. alloy suspension front fork |
Gears | Shimano Nexus Inter 7 Speed Hub, 48T Prowheel Al Alloy Chainwheel, KMC Z51 Rust Buster link chain Option: Shimano Inter 8, Shimano Alfine |
Brakes | Shimano M375 Disc Brakes (Front & Rear), 180mm rotor Option: Hydraulic Disc Brakes with E-Cut off |
Wheels | 24” Alloy Rims, Sandvik SS Spokes, Schwalbe Marathon Plus Tyres, Polycarbonate Fenders |
Saddle | Salle Royal. |
Accessories | Brass bell |
ELECTRIC SYSTEM
Motor | eZee BLDC motor with planetary gears – nominal power rating : EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmph Aluminum motor hub black coated. |
|---|---|
Battery | Li+ Battery 36V 16Ah, 3 amps Smart Charger |
Controller | eZee Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing |
Display Console | Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist. Throttle / PAS / Bimodal modes |
Lighting | Rear – Spanninga Micro FF, RL 980Front – Roxim XE high power LED 400 Lumen |
